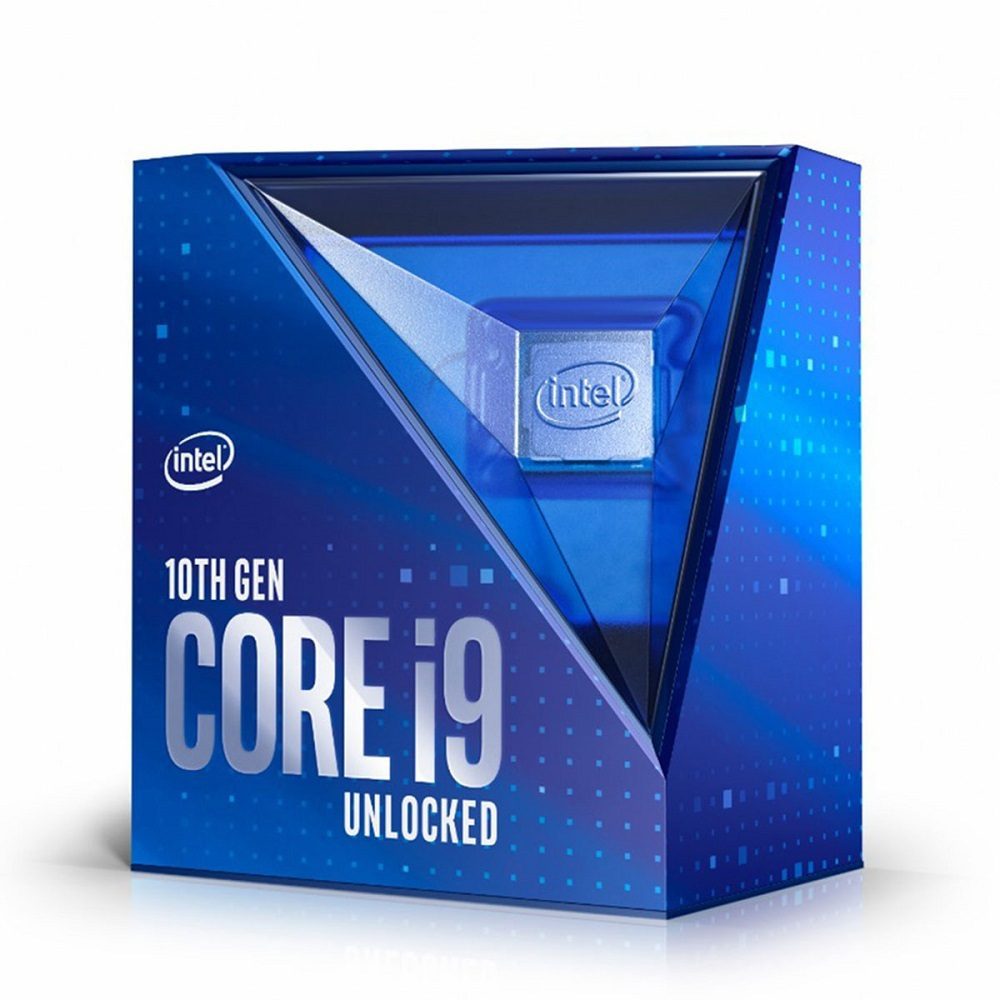

Intel Core i9 10900K 3.7GHz (5.3GHz Turbo), 10 Cores, 20 Threads, 20MB Cache, LGA 1200, 125W, Intel UHD Graphics 630, No Fansink
$645.00 inc. GST
Out of stock
Specifications
Essentials
Product Collection
10th Generation Intel® Core™ i9 Processors
Code Name
Products formerly Comet Lake
Vertical Segment
Desktop
Processor Number
i9-10900K
Status
Launched
Launch Date
Q2’20
Lithography
14 nm
Included Items
Please note: The boxed product does not include a fan or heat sink
Use Conditions
PC/Client/Tablet
Performance
# of Cores
10
# of Threads
20
Processor Base Frequency
3.70 GHz
Max Turbo Frequency
5.30 GHz
Intel® Thermal Velocity Boost Frequency
5.30 GHz
Cache
20 MB Intel® Smart Cache
Bus Speed
8 GT/s
Intel® Turbo Boost Max Technology 3.0 Frequency
5.20 GHz
TDP
125 W
Configurable TDP-down Frequency
3.30 GHz
Configurable TDP-down
95 W
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2933
Max # of Memory Channels
2
Max Memory Bandwidth
45.8 GB/s
ECC Memory Supported
No
Processor Graphics
Processor Graphics
Intel® UHD Graphics 630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.20 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI 1.4)
4096×2160@30Hz
Max Resolution (DP)
4096×2304@60Hz
Max Resolution (eDP – Integrated Flat Panel)
4096×2304@60Hz
DirectX* Support
12
OpenGL* Support
4.5
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
Intel® Clear Video Technology
Yes
# of Displays Supported
3
Device ID
0x9BC5
Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations
Up to 1×16, 2×8, 1×8+2×4
Max # of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1200
Max CPU Configuration
1
Thermal Solution Specification
PCG 2015D
T JUNCTION
100°C
Package Size
37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported
Yes
Intel® Thermal Velocity Boost
Yes
Intel® Turbo Boost Max Technology 3.0
Yes
Intel® Turbo Boost Technology
2.0
Intel® Hyper-Threading Technology
Yes
Intel® Virtualization Technology (VT-x)
Yes
Intel® Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® VT-x with Extended Page Tables (EPT)
Yes
Intel® Transactional Synchronization Extensions
No
Intel® 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Identity Protection Technology
Yes
Security & Reliability
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Software Guard Extensions (Intel® SGX)
Yes with Intel® ME
Intel® OS Guard
Yes
Execute Disable Bit
Yes
Intel® Boot Guard
Yes
All information provided is subject to change at any time, without notice. Intel may make changes to manufacturing life cycle, specifications, and product descriptions at any time, without notice. The information herein is provided “as-is” and Intel does not make any representations or warranties whatsoever regarding accuracy of the information, nor on the product features, availability, functionality, or compatibility of the products listed. Please contact system vendor for more information on specific products or systems.
